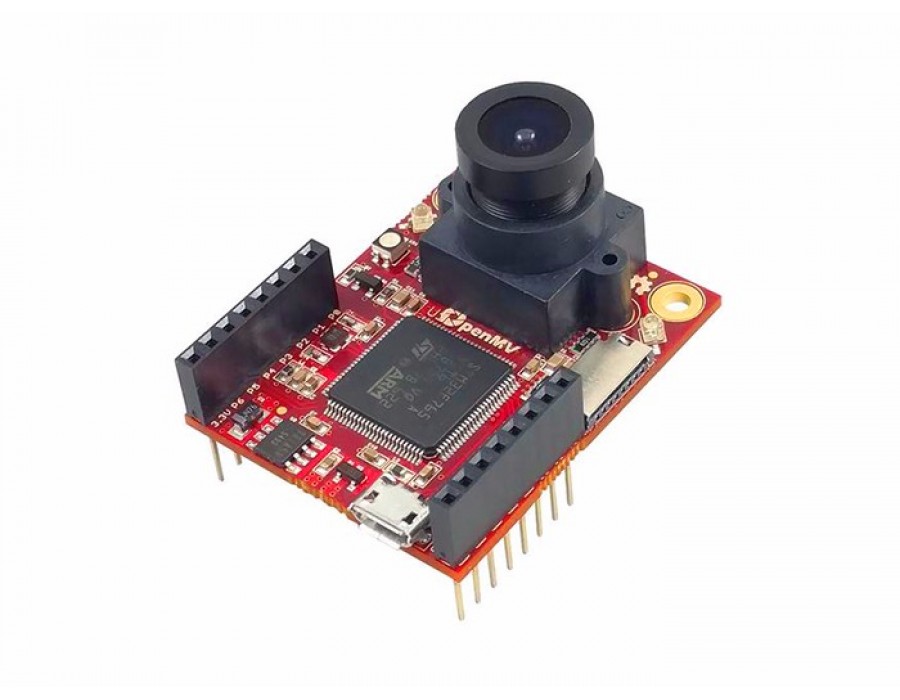

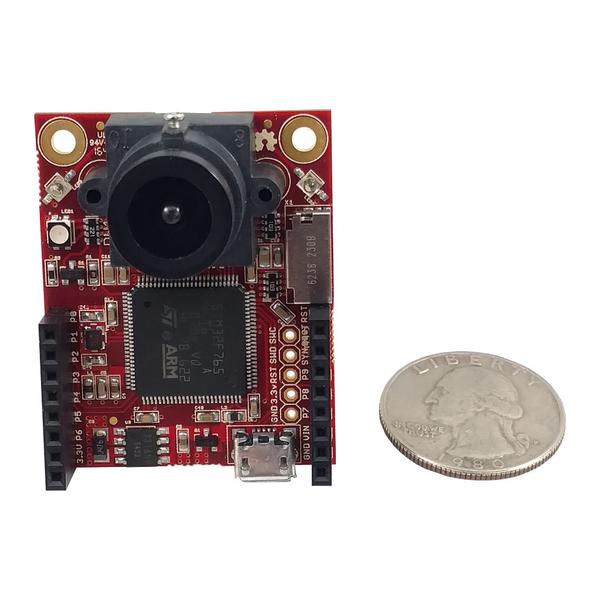

OpenMV Cam M7 Smart Vision Camera

  • MicroSD card socket capable of 100Mbs read or write
  • SPI bus runs up to 54Mbs allowing easy stream image data
  • 12-bit ADC and 12-bit DAC
  • RGB LED and two high power 850nm IR LEDs
  • OV7725 image sensor capable of 640 x 480 8-bit grayscale or 320 x 240 16-bit RGB565 images at 30 FPS
  • OpenMV camera comes with a 2.8mm lens on a standard M12 lens mount
  • STM32F765VI Arm® Cortex® M7 processor runs at 216MHz with 512KB of RAM and 2MB of flash.

Note:

  • Within India, 3 – 4 days lead time with 100% advance
  • For imports, 15 days lead time with 50% advance

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹5,999.00.Current price is: ₹5,745.00.

Available on backorder

Available on backorder

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

The OpenMV Cam M7 is a smart vision camera that’s designed for embedded machine vision applications. Here are some key features and aspects of the OpenMV Cam M7:

  1. Microcontroller-Based: The OpenMV Cam M7 is powered by a microcontroller (STM32F765VI) and features an ARM Cortex-M7 processor. This allows it to perform image processing tasks directly on the camera.
  2. Vision Capabilities: It supports various image processing functions such as color detection, face detection, feature tracking, optical flow, and more. These capabilities enable applications like object recognition, motion detection, and navigation.
  3. Programmability: The camera can be programmed using the MicroPython scripting language, which simplifies development and allows users to quickly implement custom vision algorithms and applications.
  4. Connectivity: It features USB connectivity for programming and data transfer, as well as an expansion header for additional peripherals like I2C, UART, SPI, and GPIO pins.
  5. OpenMV IDE: The OpenMV IDE (Integrated Development Environment) provides a user-friendly interface for writing scripts, testing algorithms, and deploying code to the camera.
  6. Compact Size: The camera is compact and designed for integration into small-scale projects, robotics, drones, and IoT devices where space and weight are constraints.
  7. Community and Support: OpenMV has an active community of developers and users who contribute libraries, share projects, and provide support, making it easier to get started and troubleshoot issues.

The OpenMV Cam M7 is a versatile smart vision camera suitable for a wide range of applications requiring embedded vision capabilities and real-time image processing.

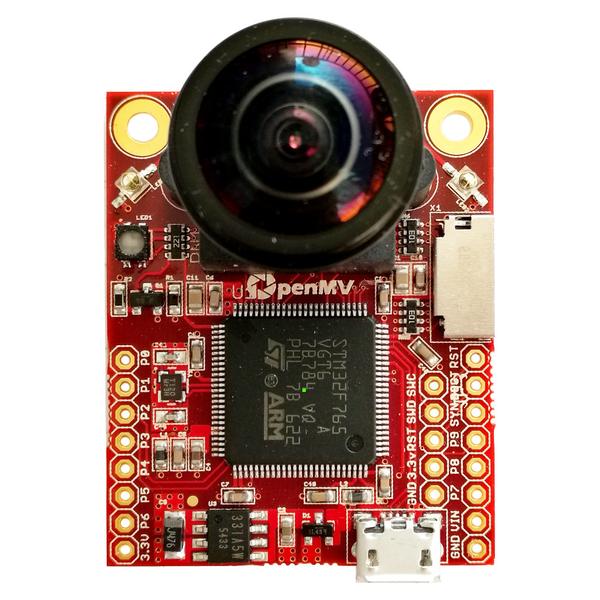

Pinout:

Features:

  1. microSD card socket capable of 100Mbs read or write.
  2. SPI bus runs up to 54Mbs allowing easy stream image data.
  3. I2C bus CAN bus, and asynchronous serial bus (TX/RX) for interfacing with microcontrollers and sensors.
  4. Three I/O pins for servo control.
  5. Interrupts and Pulse Width Modulation (PWM) on all 10 I/O pins.
  6. RGB LED and two high power 850nm IR LEDs.
  7. OV7725 image sensor capable of 640 x 480 8-bit grayscale or 320 x 240 16-bit RGB565 images at 30 FPS.
  8. OpenMV camera comes with a 2.8mm lens on a standard M12 lens mount.
Applications:
  1. Frame differencing.
  2. Color tracking.
  3. Face detection.
  4. Eye-tracking.
  5. Optical flow.
  6. QR code detection/decoding.
  7. Data matrix detection/decoding.
  8. Linear barcode decoding.
  9. AprilTag tracking.
  10. Line detection.
  11. Circle detection.
  12. Rectangle detection.
  13. Template matching.
  14. Image capture.
  15. Video recording.
