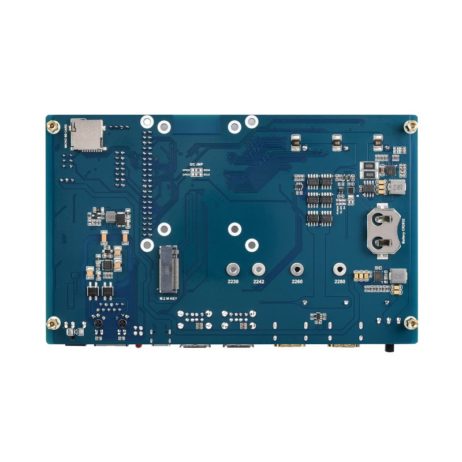

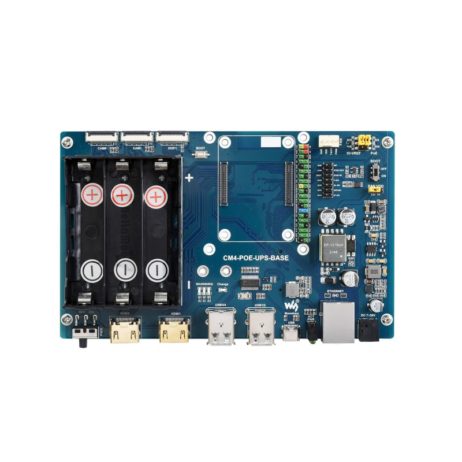

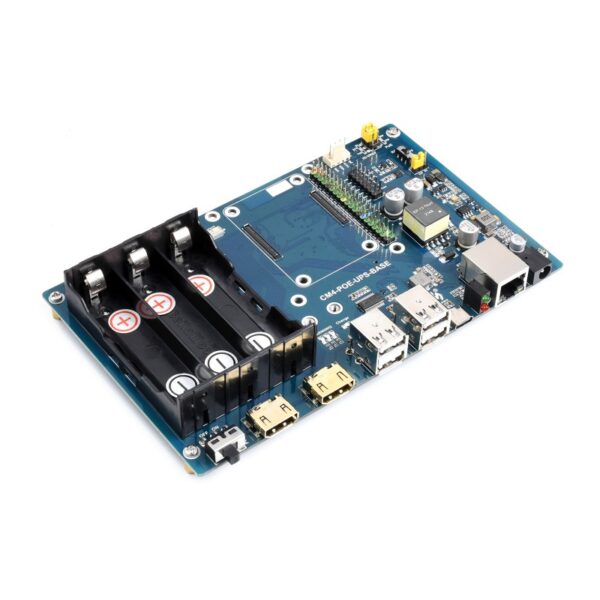

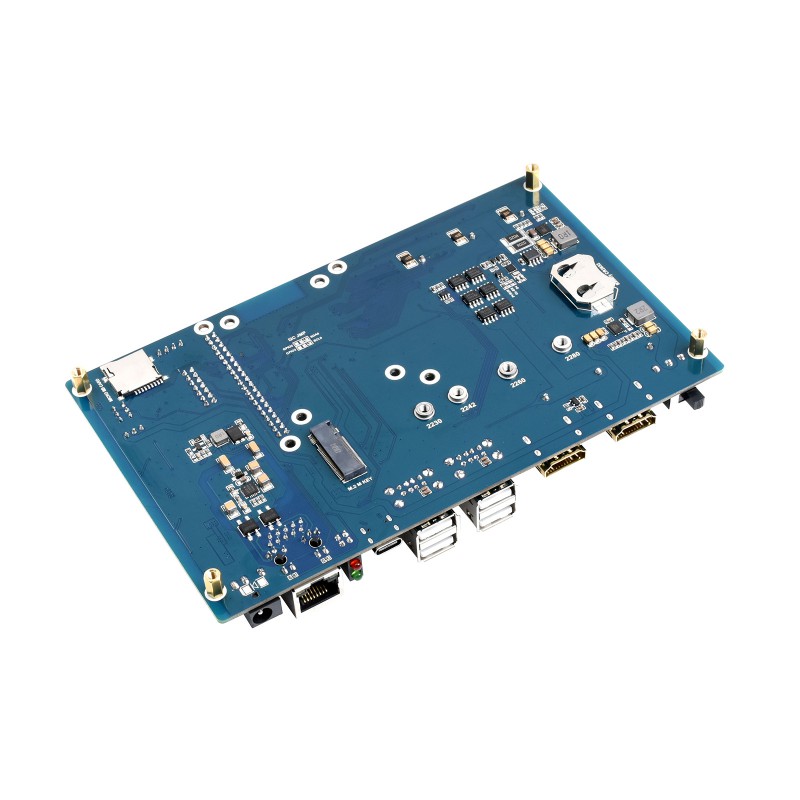

Waveshare PoE UPS Base Board Designed for Raspberry Pi Compute Module 4, Gigabit Ethernet, Dual HDMI, Quad USB2.0

  1. POWER INPUT: 7-36V
  2. STORAGE: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
  3. FAN: allows speed adjustment and measurement, 5V / 12V
  4. INDICATOR: M.2 status LED
  5. CM4: status LED

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹7,426.00.Current price is: ₹6,426.00.

Available on backorder

Available on backorder

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

Waveshare PoE UPS Base Board Designed for Raspberry Pi Compute Module 4, and supports POE power supply and 7~36V DC power supply, with four onboard USB2 .0 for user convenience.

User Guide:

  1. Confirm the fan voltage before connecting, it support 5V and 12V. if you want to connect 12V by default, please modify the jumper cap of FAN_VCC
  2. USB Type C interface is used as the USB SLAVE interface to burn the image, and it can also be used as the power supply interface, but cannot be used as the OTG interface.
  3. The BOOT switch is for CM4 startup mode, the ON for CM4 to enter the programming mode, and the OFF for system to starts normally.
  4. In normal use, it is necessary to provide at least 5V 1.5A power supply for CM4. Otherwise, there may be problems such as automatic shutdown, frequency reduction and so on.
  5. USB2.0 is closed by default, if you want to open it, you need to add dtoverlay=dwc2,dr_mode=host in config.txt
  6. When using the POE function, pay attention to check whether the switch supports PoE of the 802.3af network standard.
  7. When you need to use POE, connect the POE jumper cap to the EN position.
  8. The Change LED light is the charging indicator, it is always on when charging, goes off when fully charged, and flashes when it fails.

    Packages Includes:

    1 x  Waveshare PoE UPS Base Board Designed for Raspberry Pi Compute Module 4, Gigabit Ethernet,
