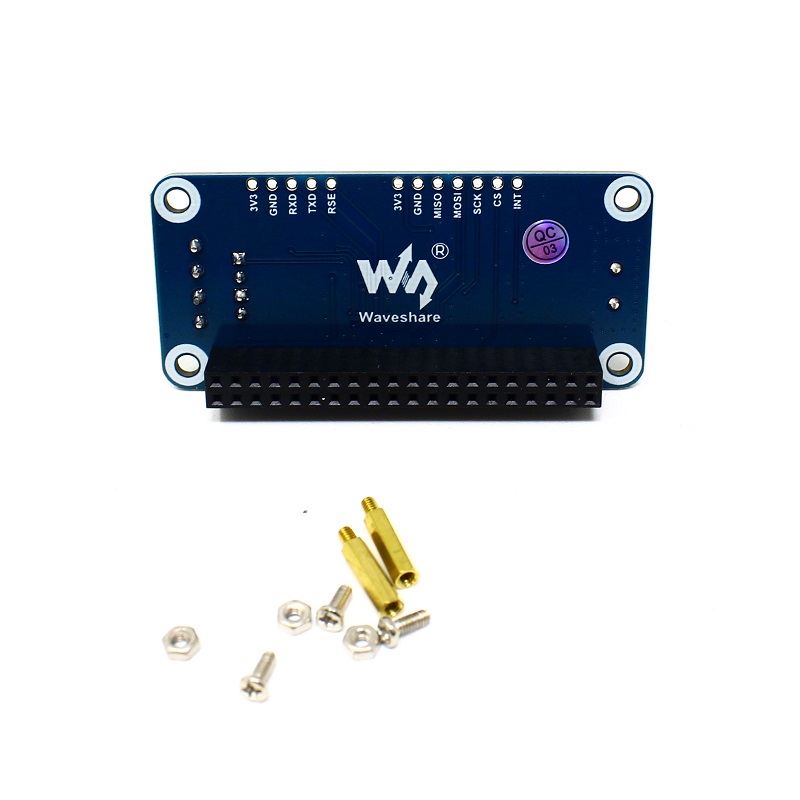

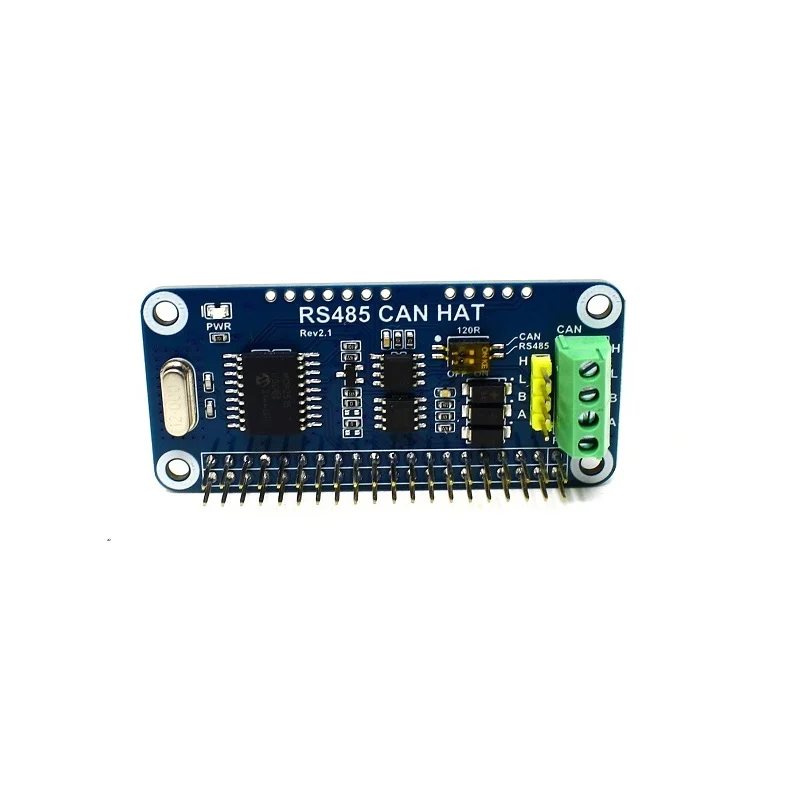

Waveshare RS485 CAN HAT for Raspberry Pi

  • Voltage required for operation: 3.3V
  • CAN device: MCP2515
  • SN65HVD230 CAN transceiver; SP3485 485 transceiver
  • Size of mounting hole: 3.0 mm

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹1,020.00.Current price is: ₹912.00.

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

With the Waveshare RS485 may HAT for Raspberry Pi, your Pi may use RS485/CAN functionalities to reliably and long-distance interact with other devices.

One of the most reliable wired serial communication protocols is RS485, which can support transmissions up to 1200 metres (4000 feet) in length. On the other hand, CAN (Controller Area Network) is utilised in automobiles to provide superior noise protection.



Yes, this board supports bidirectional communication via CAN and RS485 protocols. Since each standard or protocol uses a distinct peripheral for communication, you can use them both at the same time. Whereas RS485 uses UART from the Raspberry Pi, CAN controllers use SPI.

Features:

  1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  2. CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SN65HVD230
  3. RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
  4. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightning-proof & anti-electrostatic
  5. Reserved control pins, allows working with other control boards
  6. Comes with development resources and manual (examples in wiringPi/python)
