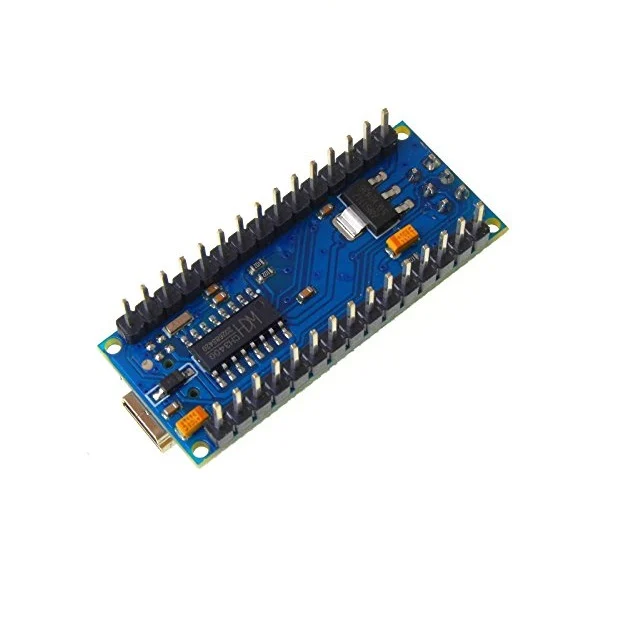

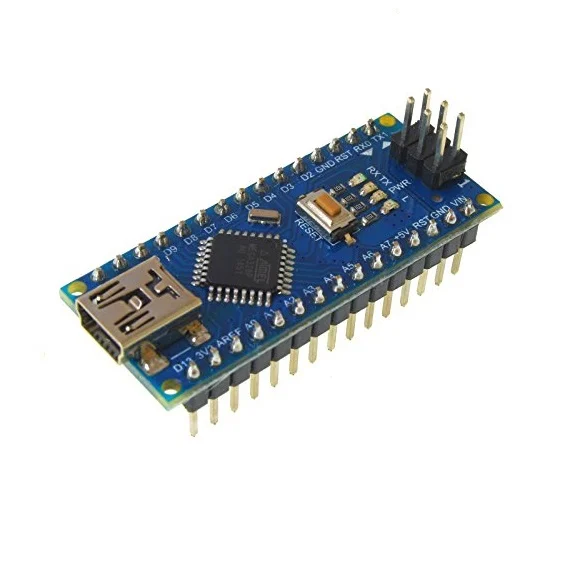

Nano R3 W/O USB Cable Compatible with Arduino (Soldered)

  1. Operating Voltage (logic level): 5V
  2. With Soldered Connector
  3. 8 analog inputs ports: A0 ~ A7
  4. 14 Digital input / output ports: TX, RX, D2 ~ D13
  5. 1 pair of TTL level serial transceiver ports RX / TX
  6. Using Atmel MEGA328PB-U (Nano)
  7. There is a bootloader installed in it
  8. Standard 0.1” spacing DIP (breadboard friendly).
  9. Manual reset switch.

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹499.00.Current price is: ₹375.00.

Available on backorder

Available on backorder

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

The Nano R3 Compatible with Arduino (Soldered) without USB Cable chipboard is based on the famous Arduino platform and does all the functions of Uno, but with a smaller footprint.

Nano CH340 Soldered Board R3 Chip without USB cable is vital for your small project where you don’t need much of a pin-outs but the small size is very important to make it look good.

The Nano equips a low-cost USB-Serial Chip that makes it less in price than Nano with FTDI USB-Serial Chip used on older versions of Arduino Nano. The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano R3). It has more or less the same functionality as the Arduino Uno but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

The Nano can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.

The size of Nano V3.0 with CH340 Chip is only 43 mm x 18 mm; it comes with 6 PWM I/O from the total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed and 32kB of flash memory.

Features :

  1. 1 pair of TTL level serial transceiver ports RX / TX
  2. Using Atmel MEGA328PB-U (Nano)
  3. There is a bootloader installed in it
  4. Support USB download and Power
  5. Support for external 5V ~ 12V DC power supply
  6. Support power supply by 9V battery
  7. Support ISP download
  8. Automatic reset during program download.
  9. Power OK blue LED on the bottom.
  10. Green (TX), red (RX), and orange (L) LED.
  11. +5V to AREF jumper.
  12. Auto-sensing/switching power input.
  13. Small mini-B USB for programming and serial monitor (cable not included).
  14. ICSP header for direct program download.
  15. Standard 0.1” spacing DIP (breadboard friendly).
  16. Manual reset switch.
