4 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive

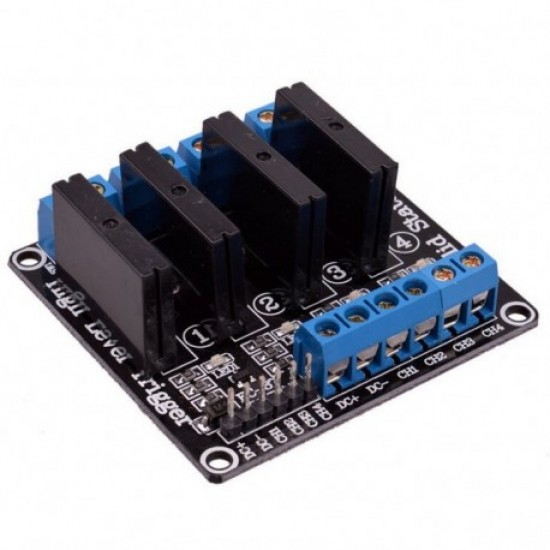

This is a 12V solid state relay module with 4 channels. An integrated circuit (IC) that functions similarly to a mechanical relay is known as a solid-state relay (SSR). They enable you to use lower voltage DC control circuits to regulate high-voltage AC loads. To do this, they use infrared light as the “contact.” An IR LED and a photo Triac are all that’s inside a solid-state relay, which is essentially a little box. Compared to mechanical relays, solid-state relays provide a number of advantages.

Similar to a mechanical relay, a solid state relay can be operated by a digital signal. A solid state relay lasts far longer than a regular mechanic relay and produces no noise.

One benefit over most mechanical relays is that they can be switched at considerably lower voltages and currents. Furthermore, solid-state relays can be switched far more quickly and for longer periods of time without wearing out because they don’t have moving contacts.

Input Parts :

1. DC+: connected to VCC (Supply power according to relay voltage)
2. DC-: connected to GND
3. IN1: CH1 Signal triggering the end of 1-channel relay module (active at the high level)
4. IN2: CH2 Signal triggering the end of 2-channel relay module (active at the high level)
5. IN3: CH3 Signal triggering the end of 3-channel relay module (active at the high level)
6. IN4: CH4 Signal triggering the end of 4-channel relay module (active at the high level)

Features:

1. 4-channel 2 AMP Solid State Relay board.
2. Control 4 loads of up to 2 amps each at 240 V AC.
3. Good for lighting, Holiday displays, etc.
4. Has been assembled, and the electrical test passed.
5. Led indicator for each relay.
6. Use it to control various appliances and other equipment with a large current.
7. It can be controlled directly by a Microcontroller
8. Input control signal voltage.
   1. 0-0.5V low stage SSR is OFF
   2. 0.5V – 2.5V (unknown state).
   3. 2.5-20V high stage SSR is ON
