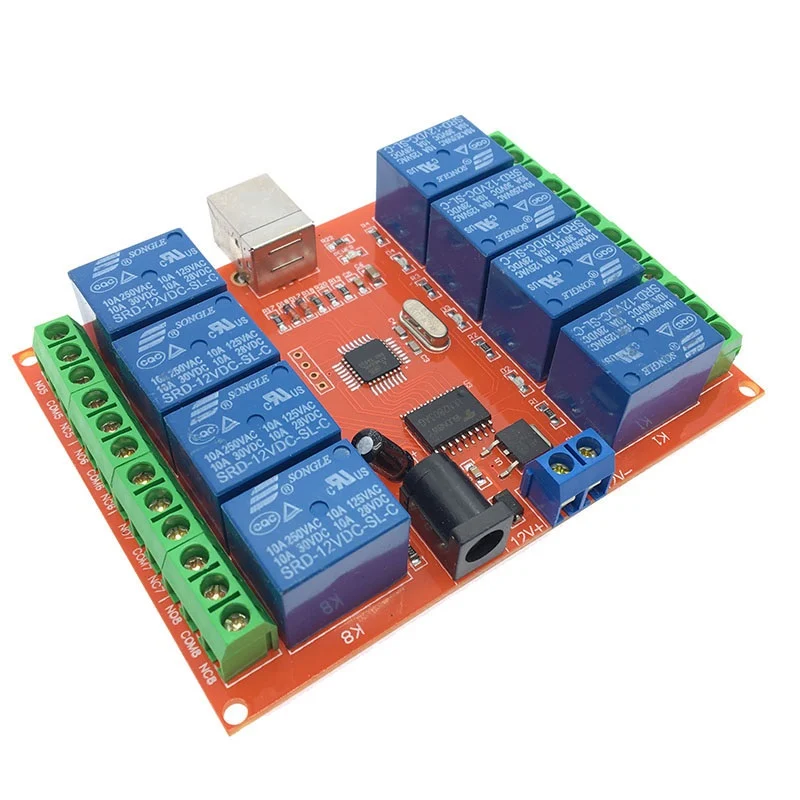

8 Channel 12V Relay Module USB (PC Intelligent) Control Switch

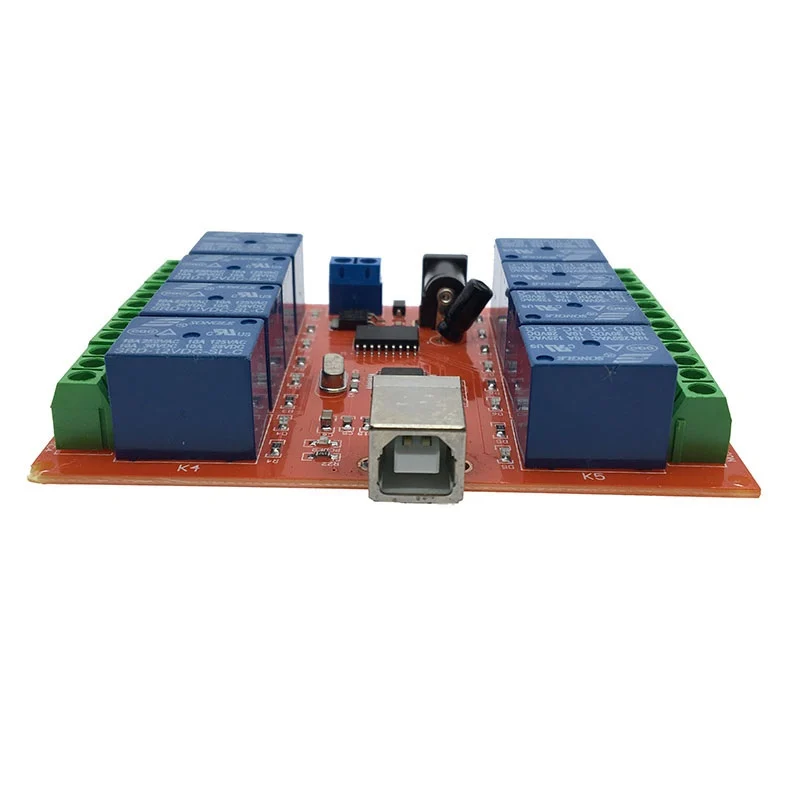

  • Squarish inbuilt USB interface for reliable connections
  • Using a high-performance USB controller chip that was imported

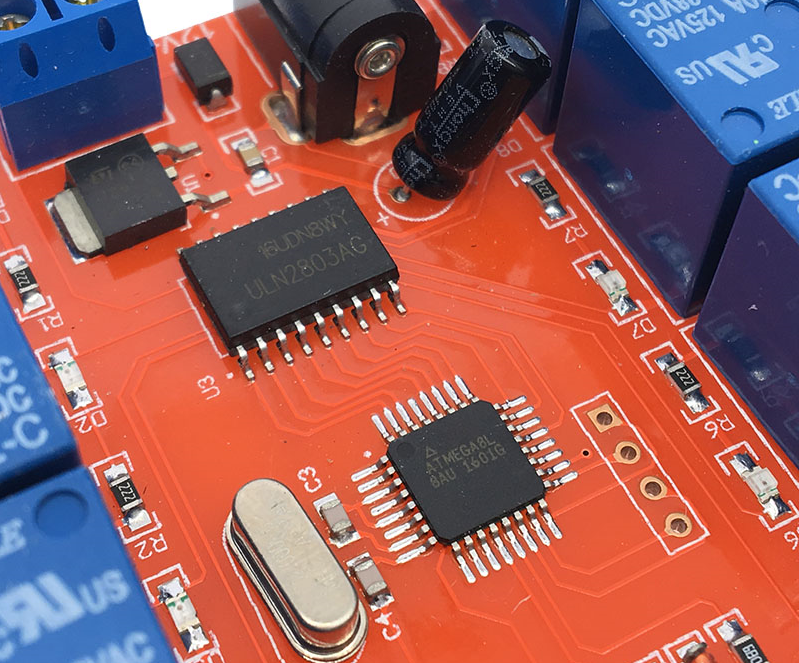

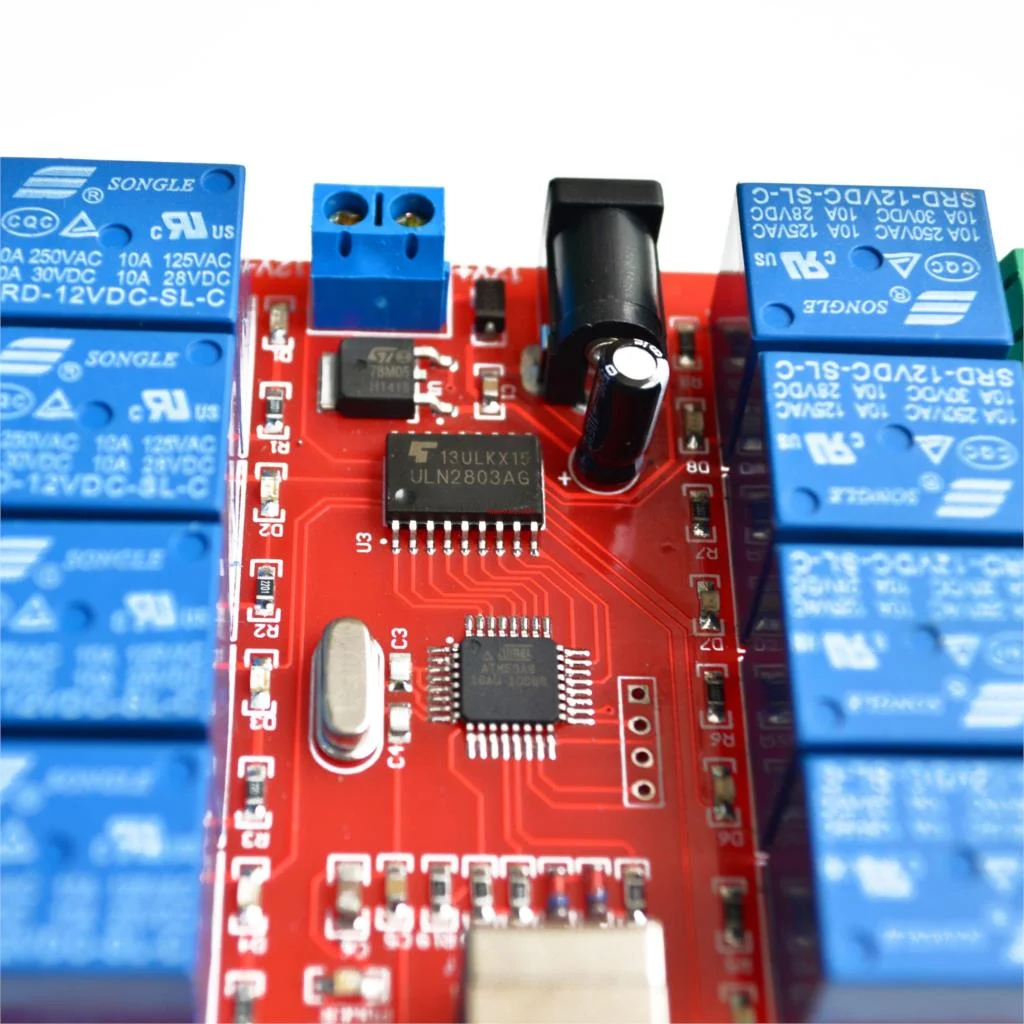

  • Relays operate more steadily when you use the unique ULN2803 relay driver chip.
  • PCB board manufacturing of military quality
  • Voltage input: DC 12 V; current input: greater than 300 mA

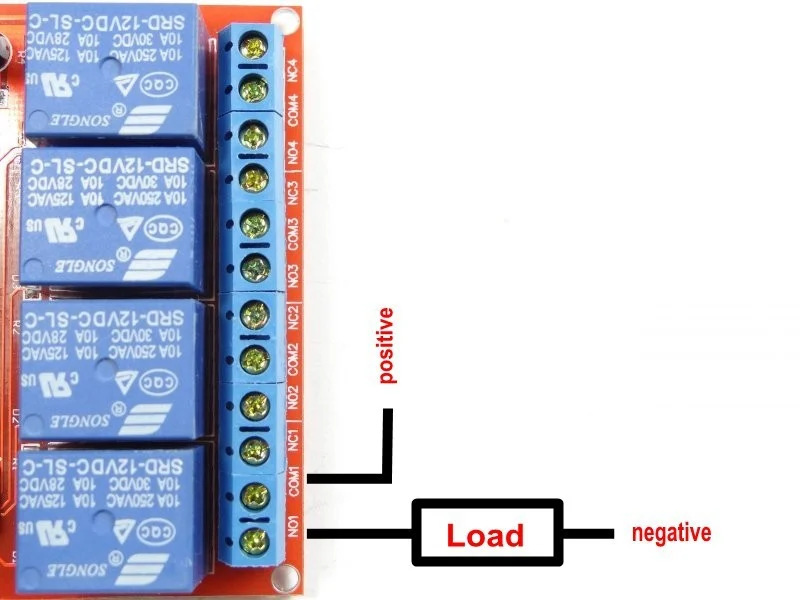

  • Connection type: NO, COM, NC

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹999.00.Current price is: ₹890.00.

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

New USB Relay Module with 8 Channels at 12V (PC Intelligent) Control Switch is based on HID technology; it doesn’t require any drivers; it’s a plug-and-play application that works with 32-bit Windows XP and 7 systems (though we haven’t tried 64-bit systems, so we’re not sure if it will work). We offer C++ and library code twice for application development; VB code is not provided, but all files are.

Note: The brand of Relays on board may be different than shown in the image according to the availability from different suppliers

Applications:

Switch control smart home, hotel intelligent switch, hotel intelligent electrical control, intelligent greenhouses, Shopping smart switch, the company plant intelligent switch, timer management cafes, karaoke OK timing control, Physical networking, industrial control equipment, testing equipment power control, street management, intelligent management, centralized power management.

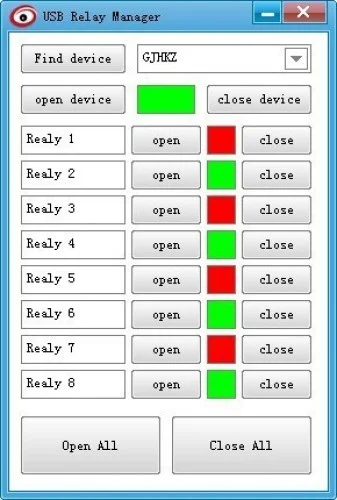

Computer UI

Features :

  1. Square onboard USB interface for connection stability
  2. The use of imported high-performance USB controller chip
  3. Use the special relay driver chip ULN2803, relay work more stable
  4. Military grade PCB board production
  5. Board power outlets and terminals, two kinds of access to power is flexible. After connecting the power, even if the computer off or unplug the USB from the computer, the relay can also remain set.
