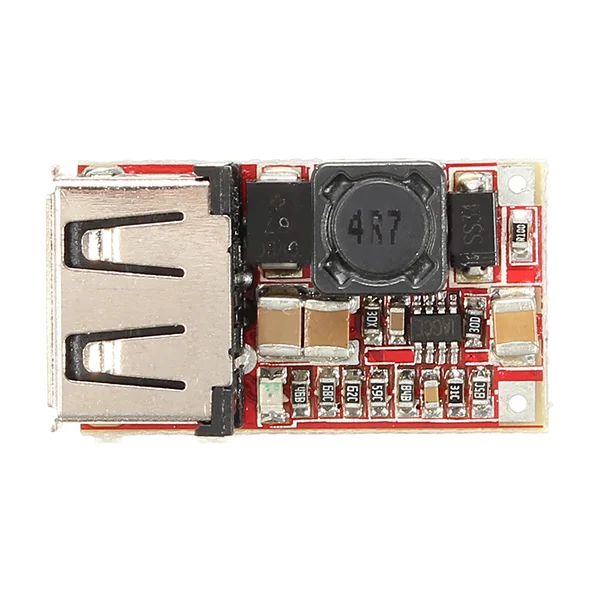

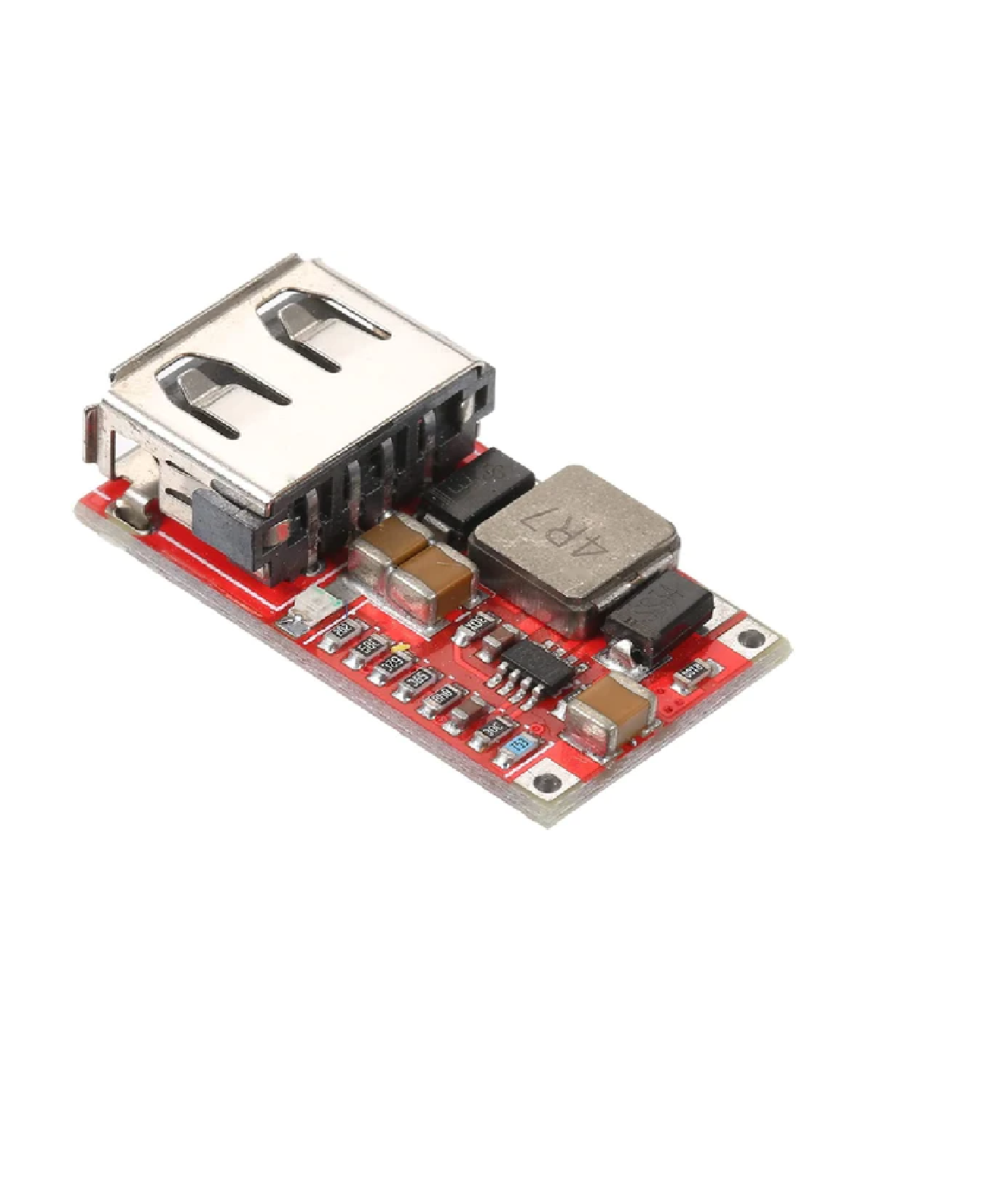

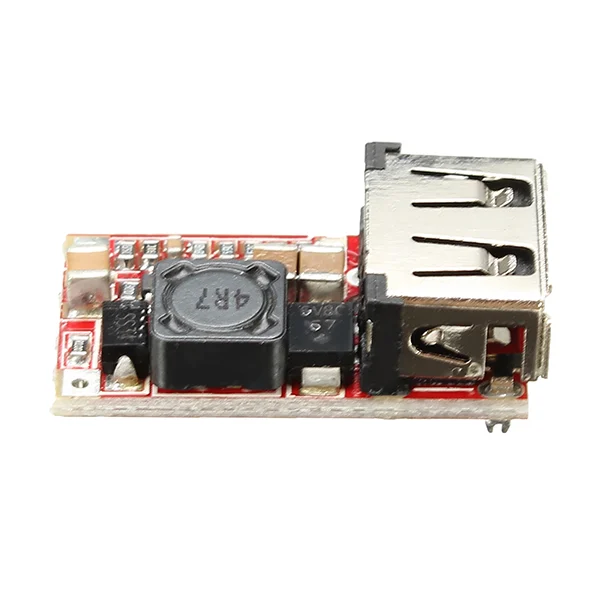

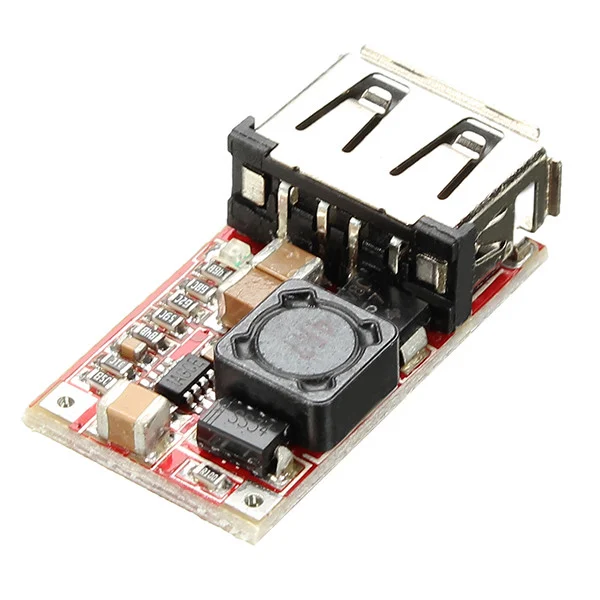

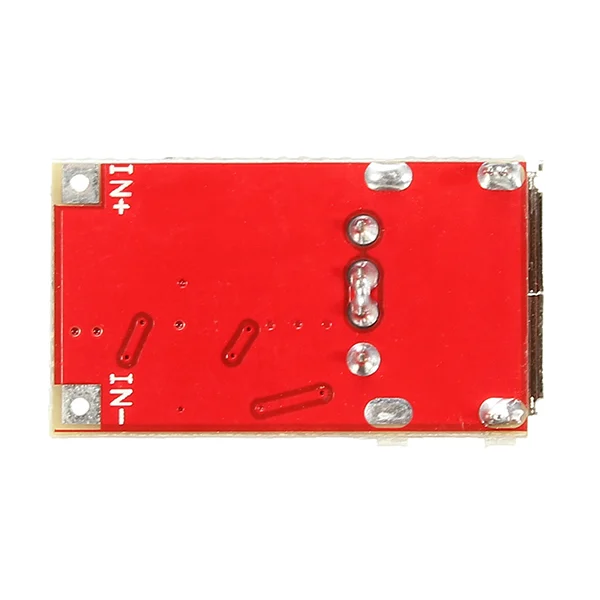

DC to DC 6-24V to 5V USB Output Step Down Power Charger Buck Converter

  • Maximum Current Output: 3 amps MAX
  • Efficiency of conversion: up to 97.5%
  • 500 KHz is the switch frequency.
  • Output Ripple: around 10mV (12V to 5V3A). 20 Mbps of bandwidth
  • The output voltage indication is displayed in red.
  • Industrial-grade operating temperature range: -40 °C to + 85 °C
  • Overvoltage protection for output: It’s true that the output 5V has 300W TVS tube clamp protection and the input 1.5A fuse.
  • Increase conversion efficiency with a flat copper inductor.
  • superior USB port

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹109.00.Current price is: ₹85.00.

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

This is a DC to DC Step Down Power Charger Buck Converter, 6-24V to 5V USB Output.

This compact DC-DC step-down voltage converter module has an input voltage range of 6-24V and an output voltage range of 5V 3A. It also features protection against input polarity reverse, output overvoltage, and short circuit.

In order to get the most of your input power, it uses synchronous rectification technology to guarantee ultra-high power conversion of up to 97.5%. On-board female type A USB port with identification circuit that is ideal for iPhone, iPad, and Android smartphones. It may also be used to charge or power any electronic device that needs 5V to 3A of input power.

Features:

  1. Non-isolated buck module (BUCK) synchronous rectification
  2. Maximum Output Current: 3A MAX
  3. Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
  4. Switch frequency: 500KHz
  5. Output Ripple: 10mV around (12V to 5V3A) 20M bandwidth
  6. High-quality USB port
  7. Output voltage indicator (RED)
  8. Small size, Compact Size
  9. Input with reverse polarity protection diode, will not damage when input is connected incorrectly
Precautions:
  1. please enhance heat dissipation when fully used for load output(i.e. 5V@3A with 24V Input).
  2. For the ideal case (i.e. 5V@2A output with 12V Input) it does not need to enhance heat dissipation.

Note: The Module has Output short circuit protection, but please do not short circuit for a long time to avoid damage due to overheating.
