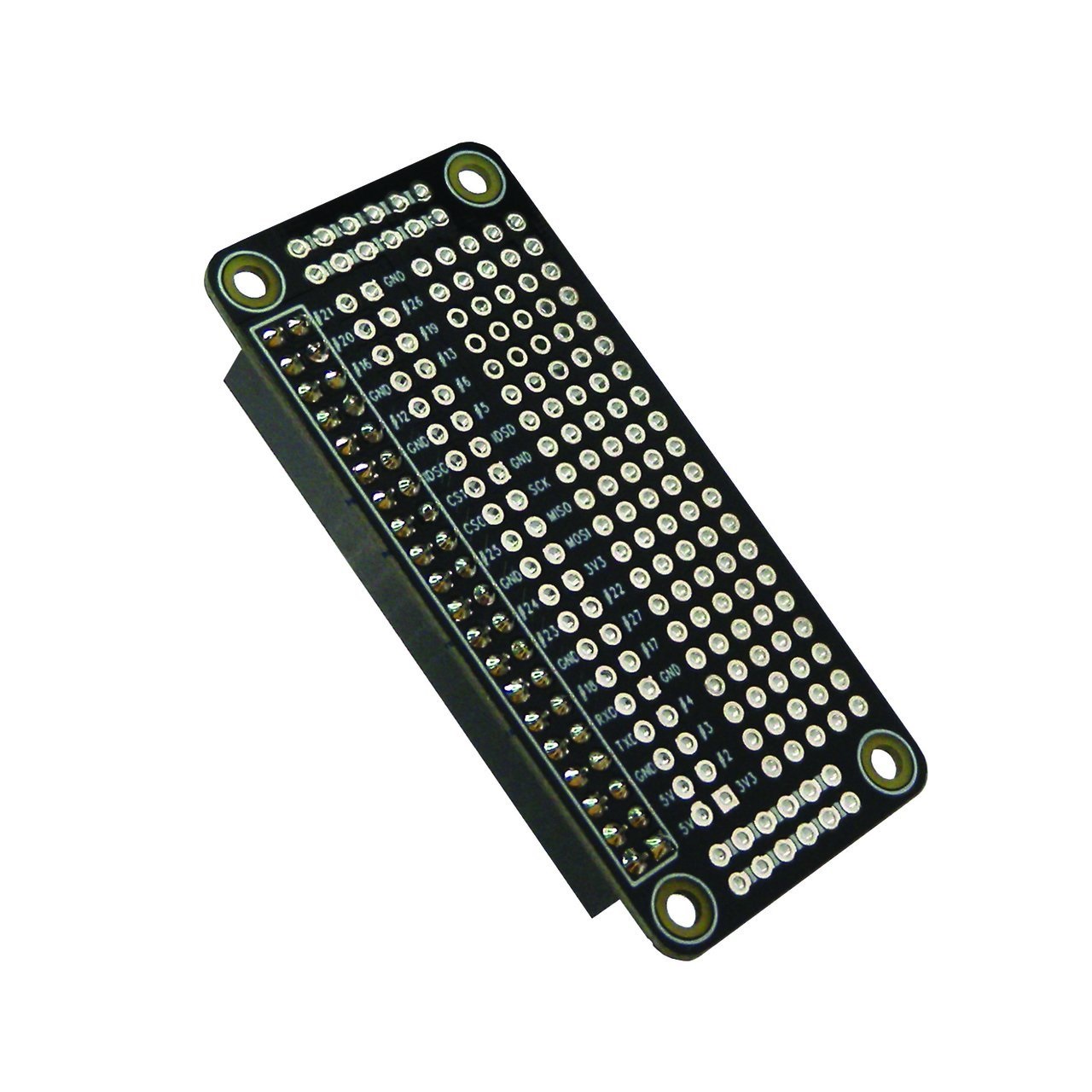

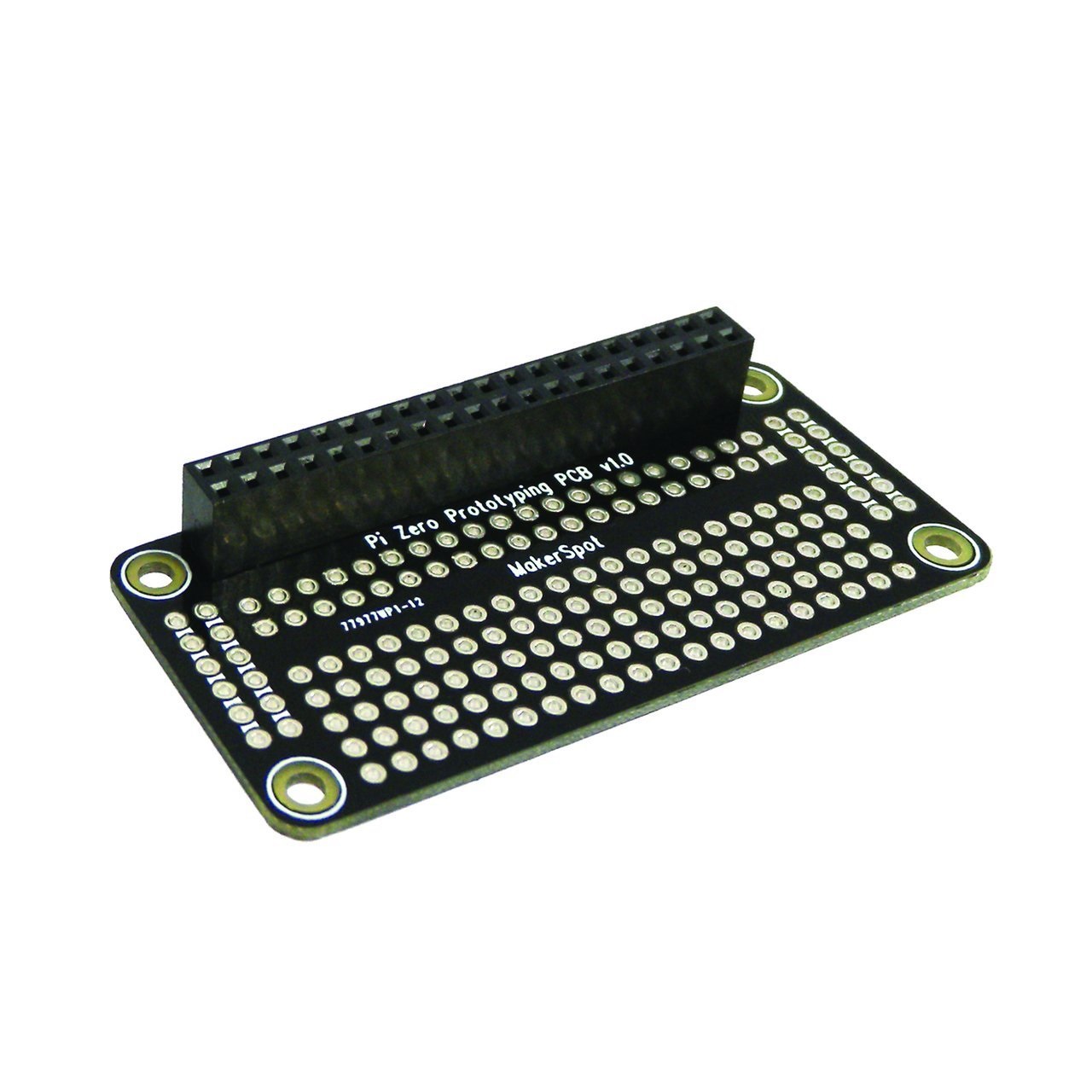

HAT DIY PCB Prototyping Board for Raspberry PI ZERO

  1. 164 holes of prototyping area
  2. 4 rows of 6 connected holes for power rails and other purposes
  3. Silkscreen marking for 40-pin Pi Header reference
  4. High-quality HASL PCB finishing
  5. D0.9mm drill holes and D1.9mm pad size

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹579.00.Current price is: ₹479.00.

Available on backorder

Available on backorder

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

HAT DIY PCB Prototyping Board for Raspberry PI ZERORaspberry PI ZERO’s HAT DIY PCB Prototyping Board can move your breadboard project to this prototyping board, which perfectly fits onto Raspberry Pi Zero (W). This prototyping board can also be used on A+, B+, Pi 2, and Pi 3 as half-size header board. With little soldering work, you can pack your project nicely on a Raspberry Pi Zero (W) and make it look professional!

The high-quality HASL PCB finishing is easier for hand soldering than gold plated or immersion gold PCB finishing.

What is it?

This board will help you make your projects quickly and easily. No mess of wires running around, the board layout is of breadboard style.

What makes it special?

It has bread-board style layout, also it has the label of the 40 pin GPIO on the board, so you don’t have to stick stickers or keep it print of the pin-out or have it open on a mobile device for reference. The 40pin GPIO is broken out in the protoboard. All the pins are isolated with each other.

It is of the same size as the Pi Zero with matching holes with the main board for easy mounting. It also has ample of space making small prototypes

You can create awesome projects using these board keeping a small footprint like create nodes for your home automation project or create an environment monitoring system with temperature, humidity and gas sensors or any other project you wish to make. Works with all raspberry pi with 40 pins. The boards can be stacked on top of one another.

Package Includes:

1 x HAT DIY PCB Prototyping Board for Raspberry PI ZERO
1 x Header Pins
1 x Mounting accessories
