TTP229 16-Way Capacitive Touch Switch Digital keypad Module

  • Operating voltage: 2.4–5.5 volts
  • Integrated regulator
  • Two ways
    • Simple eight-key mode with separate parallel output for eight channels.
    • Advanced 16-key modes with output via an I2C interface.
  • The user has the ability to choose and customise modes.
  • Adaptable sensitivity



IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹205.00.Current price is: ₹147.00.

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

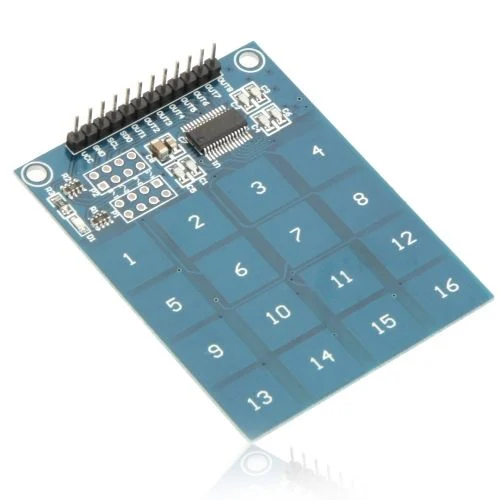

This is the TTP229 Digital Touch Sensor Keypad Module, a 16-way capacitive touch switch.

Adding capacitive touch input to your project is simple with this capacitive touch sensor module, which makes use of the TTP229 integrated circuit. Its sixteen touch-sensitive pads are a perfect substitute for the antiquated keypads.

Similar to how a pushbutton functions, capacitive touch enables electronics to detect when your finger is a few millimetres away from a surface and imitate a button “press.” Anywhere low- to no-force human contact sensing is desired, capacitive sensing can be applied.

This 16 switch digital touch sensor module is based on a touch sensing IV TTP229 and is an easy-to-use capacitive touch sensing module. This device’s touch sensor features an integrated regulator. Through the non-conductive dielectric substance, we can add interfaces.

Note : HW-136 on board working remains same.

Features :

  1. Built-in regulator
  2. Two modes
    • Simple 8 key mode with independent 8 Channel parallel output.
    • Advanced 16 Key modes with I2C interface output.
  3. Modes can be selected and configured by the user.
  4. Adjustable sensitivity.
