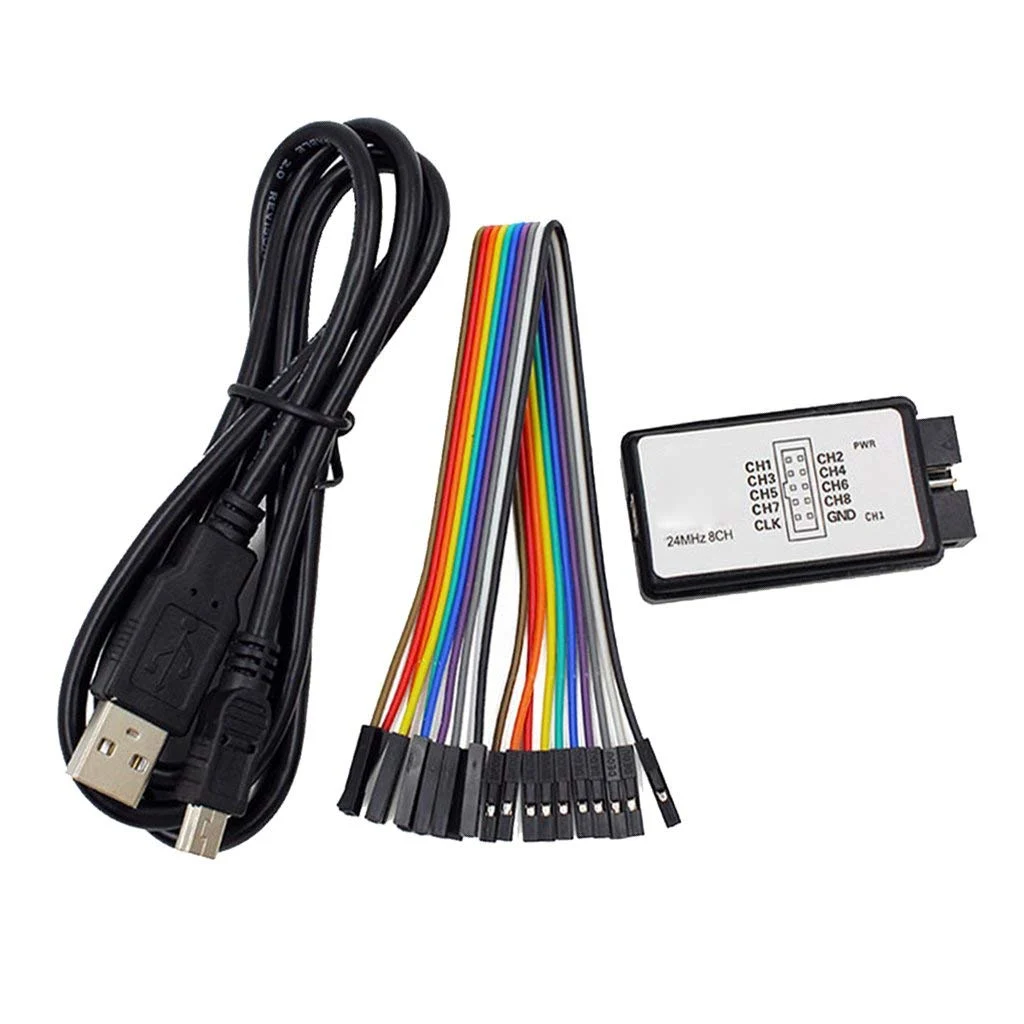

USB Logic Analyze 24M 8CH, MCU ARM FPGA DSP Debug Tool

  • A tiny light would logically represent the CHO electrical level.
  • Features for input: 5PF, 100K Ohm.
  • USB power source with USB logic analyzer for tracking, examining, and troubleshooting electronic circuits
  • Eight Channels Logic analyzer USB with sampling frequency of 24 MHz
  • Able to automatically analyse UART, IIC, SPI, etc.
  • Excellent for FPGA, ARM, and MCU development
  • Voltage range: 0-5.5V

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹599.00.Current price is: ₹512.00.

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

The most affordable and practical debugging tool for digital signal analysis is USB Logic Analyse 24M 8CH, MCU ARM FPGA DSP. It can assist you in thoroughly analysing the UART, IIC, SPI, and CAN interfaces.

This is also a fantastic option if you don’t want to start with a pricey oscilloscope. There are eight digital channels in total. The voltage range is 0V to 5.5V, and the voltage threshold is regarded as low below 1.5V and high above 1.5V. 24 m sample rate; capable of automatically analysing numerous additional standard protocols, including SPI, IIC, and UART.

Purchase of this package is highly recommended if you produce FPGA, ARM, or single-chip applications. Sharpening your device is a necessary first step for any MCU-related product; if you succeed, this instrument will be your crescent moon nod. Debugging UART, SPI, and IIC connectivity in particular will undoubtedly allow you to achieve twice the results with half the work.

Note: The color and type of USB Logic Analyze may vary as per the availability of the actual product.

Connections Diagrams with Arduino:

1 3

                                                                         UART Connections



2 1

                                                                        I2C connection

3 2

                                                                           SPI connection

Specifications and Features:

  1. Logical light indication: a small light indicate CHO electrical level.
  2. Input feature: 5PF,100K Ohm.
  3. USB power supply; USB logic analyzer for monitoring, analyzing and debugging digital circuits
  4. 8-Channels USB logic analyzer with a 24Mhz sampling frequency
  5. Can analyze UART, IIC, and SPI, etc automatically
  6. Great for MCU, ARM system and FPGA development
  7. Voltage: 0-5.5V
  8. Threshold Voltage: 1.5V
  9. The sampling rate can be set as below:
    24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
  10. Data upload real-time, the max of the depth of the collection is 10T, far from the practical need.
