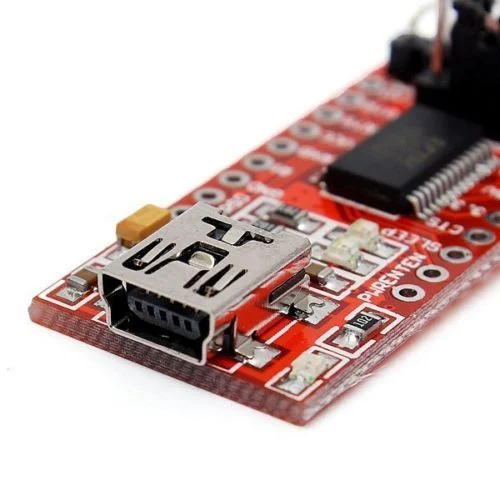

USB TO UART TTL 5V 3.3V FT232RL Download Cable To Serial Adapter Module For Arduino

  • Consistent performance, standard interface structure, and compatibility with multiple Arduinos, including the Pro Mini Original FTDI FT232 chip
  • Utilising a 500MA self-restore fuse and an RXD/TXD transceiver communication indicator, USB power offers current protection.
  • Including LED indicators for power, sending, receiving, and operational status
  • 3.3V and 5V mini USB port connections are supported.

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹190.00.Current price is: ₹141.00.

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

A simple breakout board for the FTDI FT232RL USB to serial IC, Revision 2, is the USB TO UART TTL 5V 3.3V FT232RL Download Cable To Serial Adapter Module. For compatibility with both authentic Arduino and cloned 5V Arduino boards, this board’s pinout matches that of the FTDI cable. Moreover, conventional serial applications can make advantage of it.

The primary distinction with this board is that it exposes the DTR pin instead of the FTDI cable’s RTS pin. When a fresh Sketch is downloaded, the DTR pin enables an Arduino target to automatically reset. Having the ability to download a sketch without needing to press the reset button is a pretty great feature. Any Arduino board with the reset pin extended to a 6-pin connector will automatically be reset by this board.

The coloured wires on the FTDI cable match the pins marked BLK and GRN. On the FTDI cable, the green wire is CTS and the black wire is GND. To align the FTDI basic board with your Arduino target, use these BLK and GRN pins.

Compared to the FTDI cable, this board is slightly more user-friendly because it features TX and RX LEDs. The LEDs actually display serial communication, which you may use to check the board’s functionality.

The auto-reset feature on this board is awesome! It was created to make Arduino development less expensive and easier to use. This kind of connector is used by our LilyPads and Arduino Pro boards.

This board has a wonderful feature that lets you tune it to be either 3.3V or 5V (both IO level and power output) with a jumper on the back of the board. If you need to switch to 3.3V, you can cut the default trace and install a solder jumper. This board ships with the voltage set to 5V.

How to interface with the Pro Mini Module:

      FTDI—–>Pro Mini

  1. GND—->GND
  2. VCC—->VCC
  3. TX—–> RX
  4. RX—-> TX
  5. DTR—->GRN

Features :

  1. Standard interface layout, compatible with a variety of Arduinos such as the Pro Mini
  2. Original FTDI FT232 chip, stable performance
  3. USB power has current protection, using 500MA self-restore fuse
  4. RXD/TXD transceiver communication indicator
  5. With power, sending, receiving indicator, working status LED indicators
  6. With 3.3V and 5V TTL Level supply options
  7. USB to serial TTL module, download STC SCM
  8. Mini USB Port Connection
  9. Support 3.3V, 5V
