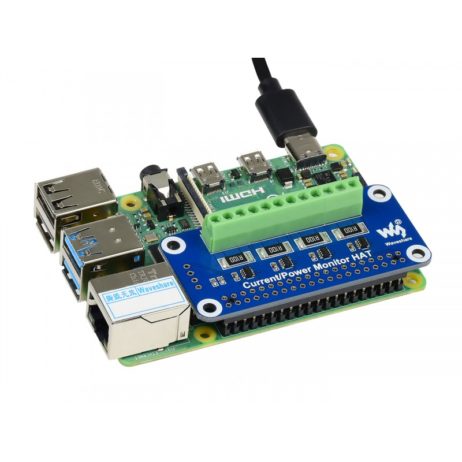

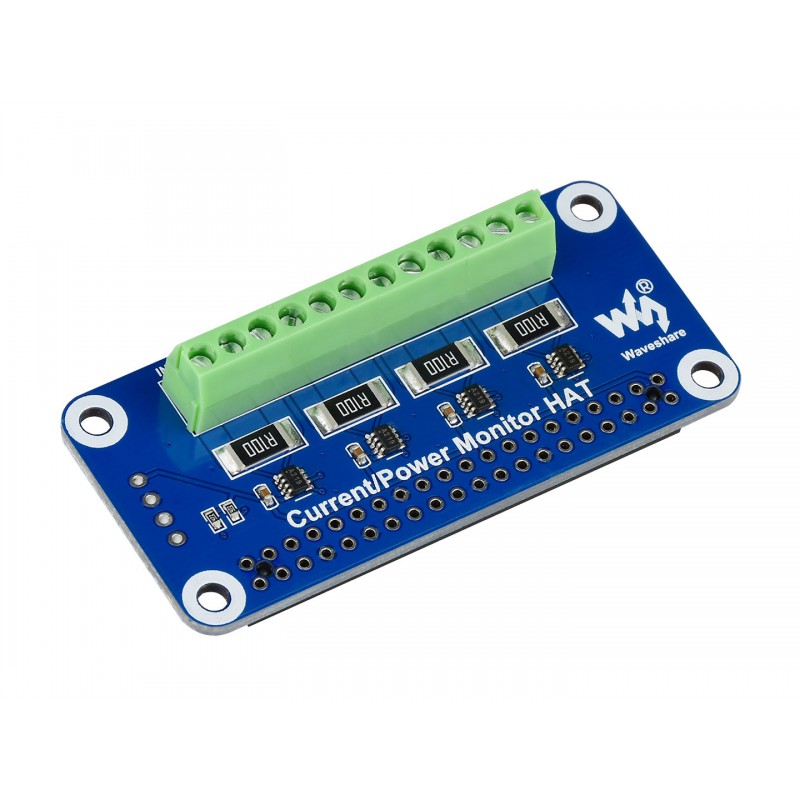

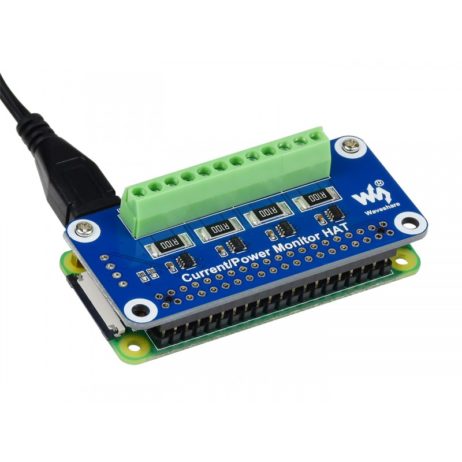

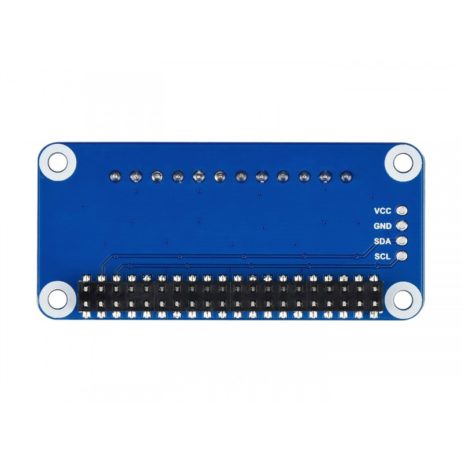

Waveshare 4-ch Current/Voltage/Power Monitor HAT for Raspberry Pi, I2C/SMBus

  1. Model: Waveshare 4-ch Current/Voltage/Power Monitor
  2. Operating voltage: 3.3V/5V
  3. Control interface: I2C/SM Bus
  4. Sampling resistor: 0.1Ω 1%
  5. Voltage range: 0~26V
  6. Current range: ±3.2A

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹5,079.00.Current price is: ₹4,079.00.

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

This is a 4-ch current and power monitor HAT designed for Raspberry Pi. Via the I2C or SM Bus interface, it is easy to monitor each channel’s current, voltage, and power consumption, as well as the voltage between both sides of the sampling resistor. This is a 4-ch current and power monitor HAT designed for Raspberry Pi. Via the I2C or SM Bus interface, it is easy to monitor each channel’s current, voltage, and power consumption, as well as the voltage between both sides of the sampling resistor.

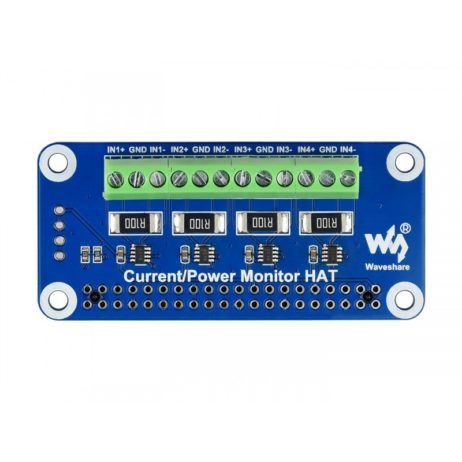

This module can be used to test currents and voltages of four channels, they are (IN1+ IN1-), (IN2+ IN2-), (IN3+ IN3-) and (IN4+ IN4-). INx+ is the current input, and INx- is the current output. Module measure the differential voltage of the sample resistor connected between INx+ and INx-, with the voltage we can measure the working current. The module supports measuring bidirectional current, so users can invert the input and output.

Package Include:

1 X Current/Power Monitor HAT

1 X 2x20PIN female pin header

1 X RPi screws pack (2pcs)
