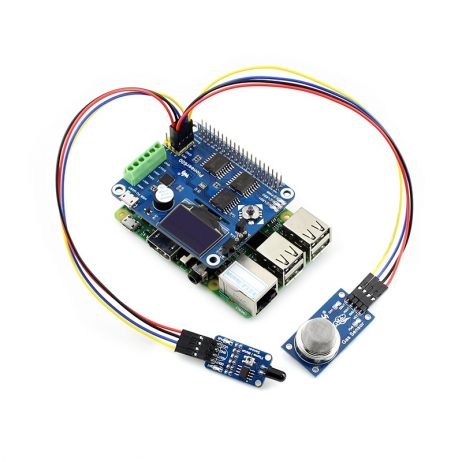

Waveshare Pioneer600 Raspberry Pi Expansion Board

  1. Onboard CP2102: USB TO UART converter
  2. 0.96-Inch OLED Display
  3. PCF8591 : 8-bit AD/DA converter, I2C interface
  4. BMP180: pressure sensor, I2C interface
  5. PCF8574: I/O expansion chip, I2C interface
  6. DS3231: high precision RTC chip, I2C interface
  7. LFN0038K IR receiver

IBOTS's 10th Anniversary Sale

Hurry and get discounts on all Raspberry Products up to 20%

IBOTS1000

Original price was: ₹2,806.00.Current price is: ₹2,406.00.

Compare
Add to wishlist
  • Pick up from the IBOTS Store

Free

  • Delivery Charges: Tamil Nadu

₹75 for parcels below 1 Kg and ₹100 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹75

  • Delivery Charges: Other South India

₹125 for parcels below 1 Kg and ₹175 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹125

  • Delivery Charges: North India

₹250 for parcels below 1 Kg and ₹325 for parcels weighing between 1 Kg to 2 Kg.

2-3 Days

₹250

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Rs. 99

  • Warranty 1 year

More details

  • Free Returns Policy

More details

Payment Methods:

1. Order the Product and Specify the Delivery Method

2. You Will Receive an Order Confirmation Message

3. Wait for Your Order to Arrive

4. Pick up Your Order at The Checkout Area

Description

Pioneer600 Raspberry Pi Expansion Board includes miscellaneous components, all on a single piece of hardware. It supports Raspberry Pi A+, Raspberry Pi B+, Raspberry Pi 2 Model B, and Raspberry Pi 3 Model B. Pioneer600 offers a standard I/O interface over various components and offers more GPIO possibility with the PCF8591.

With Pioneer you can control your Raspberry Pi through a serial terminal exploiting the onboard CP2102 and interface 0.96-inch OLED display just like a walk in the park. Some of the other peripheral features are high precision RTC DS3231, AD/DA PCF8591 with 8-bit resolution, LFN0038K IR receiver, and BMP180 Pressure/temperature sensor.

What’s onboard Pioneer600:

  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. USB TO UART: control the Pi through a serial terminal
  3. AD/DA IO interface: screw terminal
  4. 1-WIRE interface: for connecting 1-WIRE devices like DS18B20
  5. Sensor interface: for connecting various sensors
  6. 0.96inch OLED: SSD1306 driver, 128×64 resolution, SPI interface
  7. Buzzer
  8. CP2102: USB TO UART converter
  9. PCF8591 : 8-bit AD/DA converter, I2C interface
  10. BMP180: pressure sensor, I2C interface
  11. PCF8574: I/O expansion chip, I2C interface
  12. DS3231: high precision RTC chip, I2C interface
  13. Power indicator
  14. User LED
  15. Joystick
  16. LFN0038K IR receiver

    Package Includes:

    1 x Pioneer600 Board

    1 x DS18B20

    1 x USB Type-A Plug to Micro B Plug Cable

    1 x RPi Screws Set
