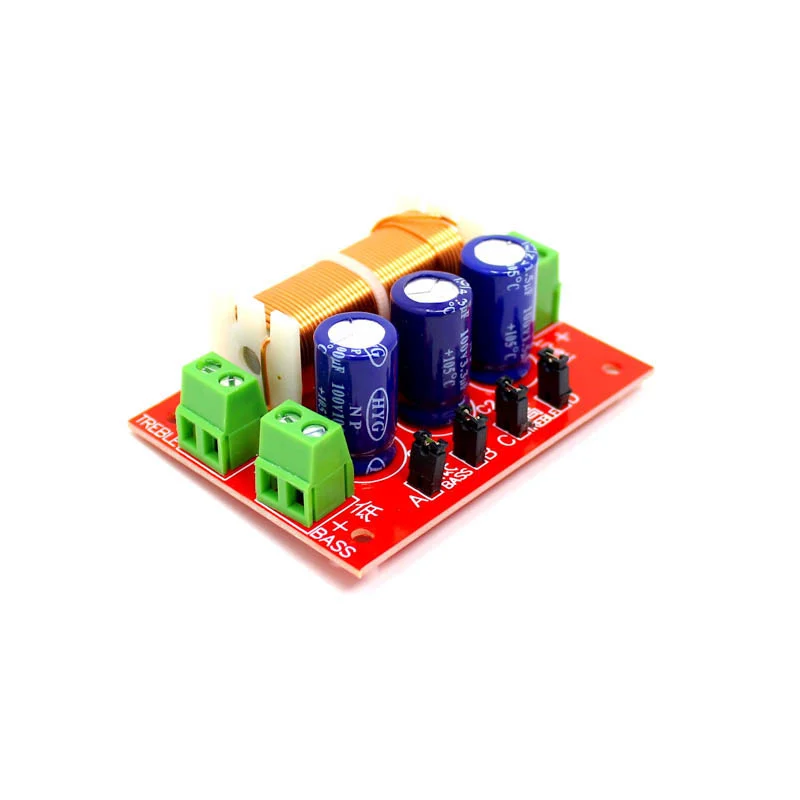

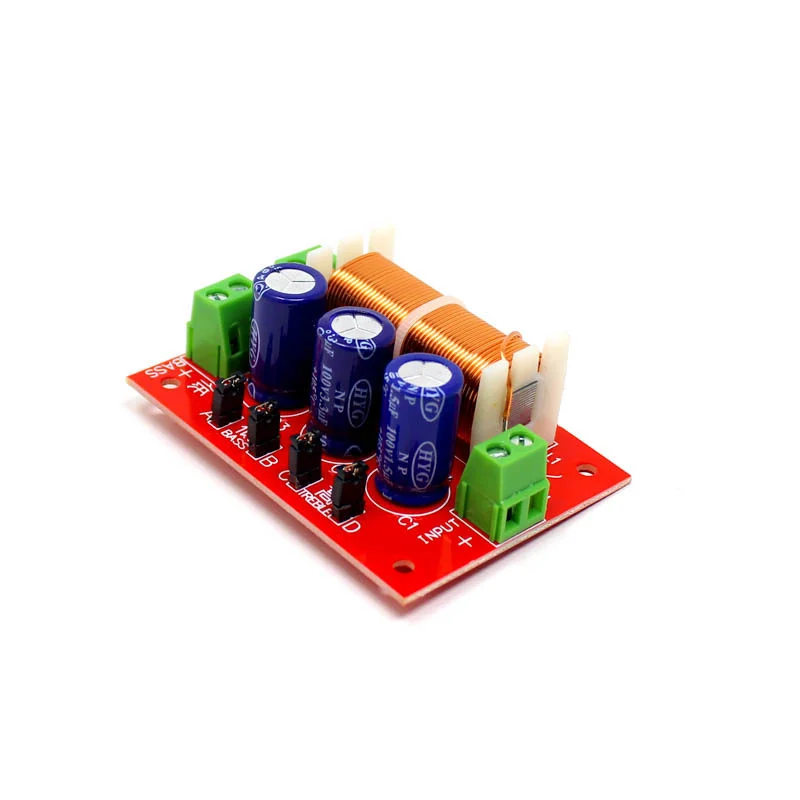

YLY-2088 400W Treble/Bass Crossover Dual 2-Way Speaker Audio Crossover

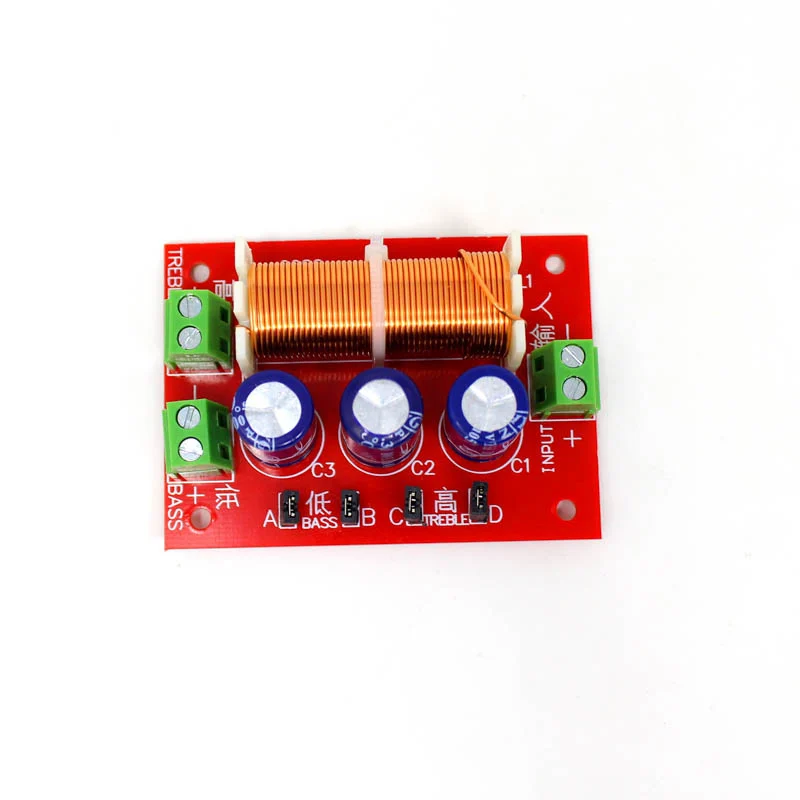

This is a 400W speaker filter module. You can adjust the bass range’s audio effect by using jumpers A and B. A represents the bass audio range’s lower limit and B its upper limit. Certain speakers will exhibit distortion if the bass is turned up excessively. When that occurs, we take off jumper A’s cap to reduce distortion by limiting extremely low bass. Bass is raised when Jumper B’s cap is taken off, while bass is reduced when it is on. The Treble range is controlled by jumpers C and D. The treble is loudest when both jumpers C and D have their caps on. The treble sound is quieter when only cap C is activated. Lower even more when cap D is the only one on. There is no treble sound when C and D’s caps are removed.

The YLY-2088 400W Treble/Bass Crossover Dual 2-Way Speaker Audio Crossover sounds like a piece of equipment designed to enhance audio quality by separating and directing specific frequency ranges to different speakers or drivers.

Let’s break it down:

1. 400W Power Rating: This indicates the maximum power handling capacity of the crossover. It can handle audio signals up to 400 watts without distortion or damage.
2. Treble/Bass Crossover: This means it’s designed to split the audio signal into high-frequency (treble) and low-frequency (bass) components. Each component is then directed to the appropriate speaker or driver.
3. Dual 2-Way: This suggests that it’s a 2-way crossover, meaning it separates the audio signal into two frequency bands (high and low). “Dual” could imply that there are two sets of these crossovers in one unit, allowing for more flexibility in speaker configuration or bi-amplification setups.
4. Speaker Audio Crossover: This clarifies that it’s specifically designed for use in speaker systems to ensure that each speaker receives the frequencies it’s best suited to reproduce, optimizing overall sound quality.
